Prototype Build of Roof Cleaning Equipment by PASoftwash LLC Indiana, PA
Steve Salley said
Mar 21, 2012

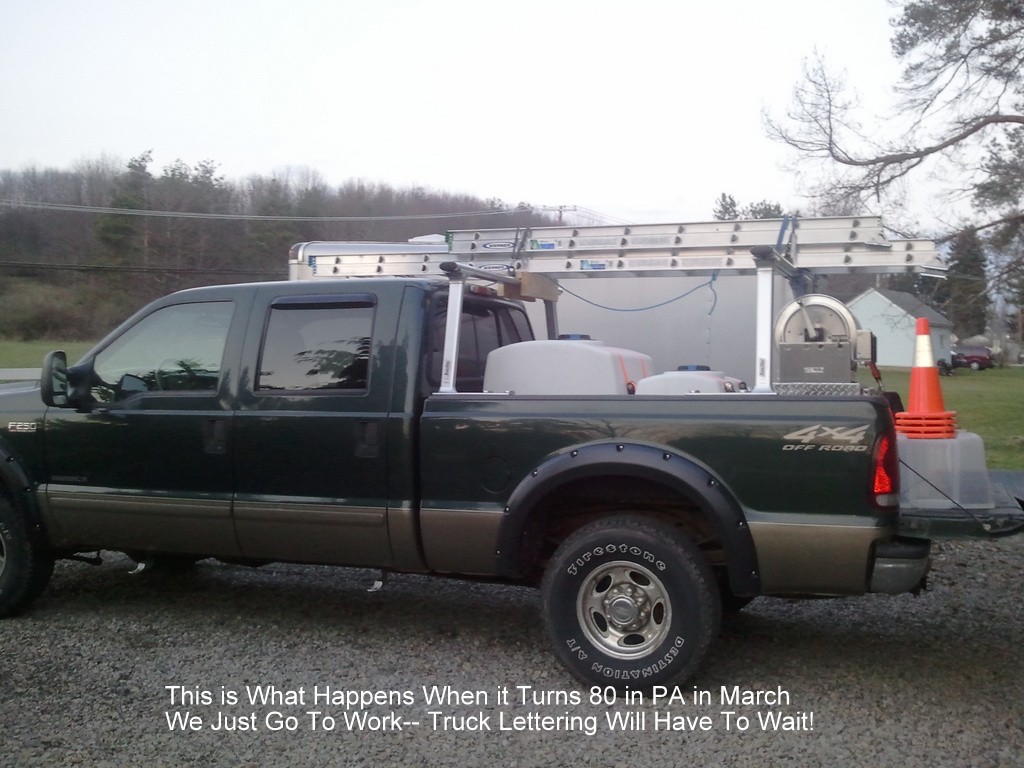

This is some pictures of our prototype Roof Cleaning System PASoftwash LLC in Indiana, PA has built for our Ford F250 7.3 dsl that is being put into service. If we need to drag the whole shop with us for other work, no problem!

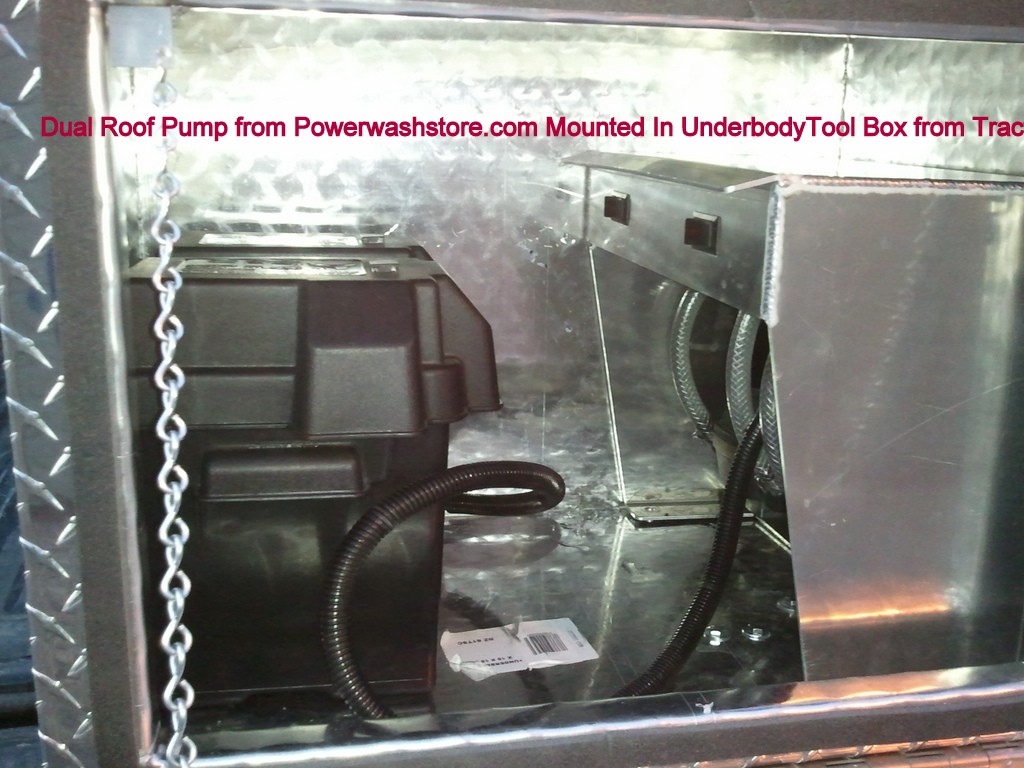

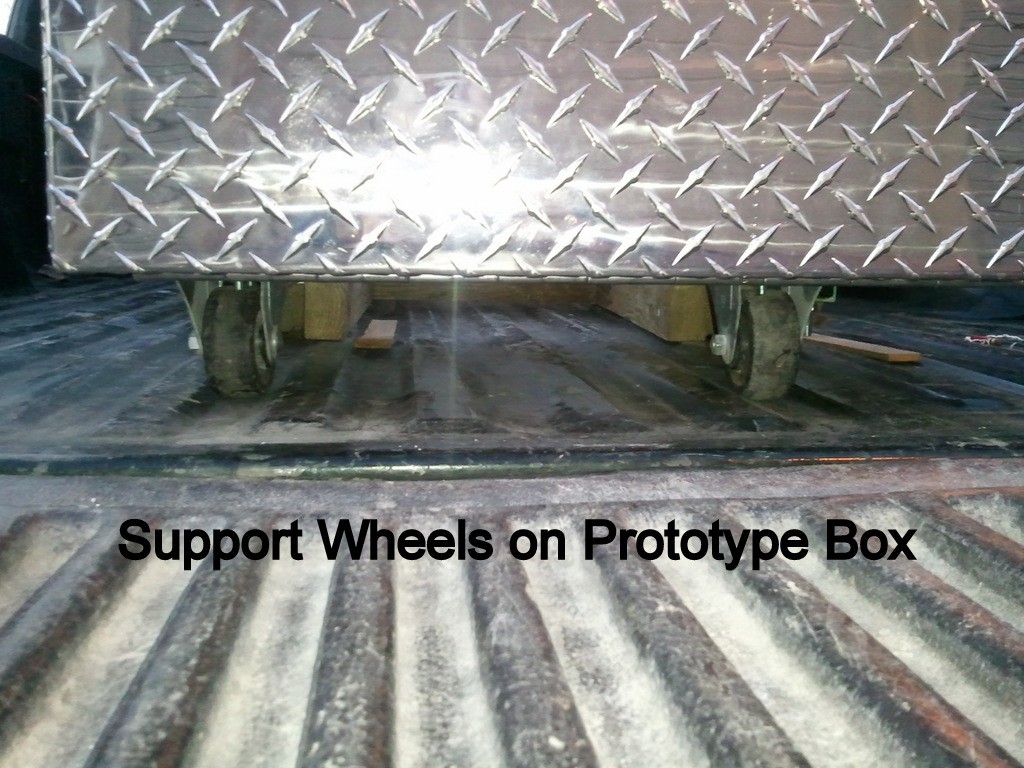

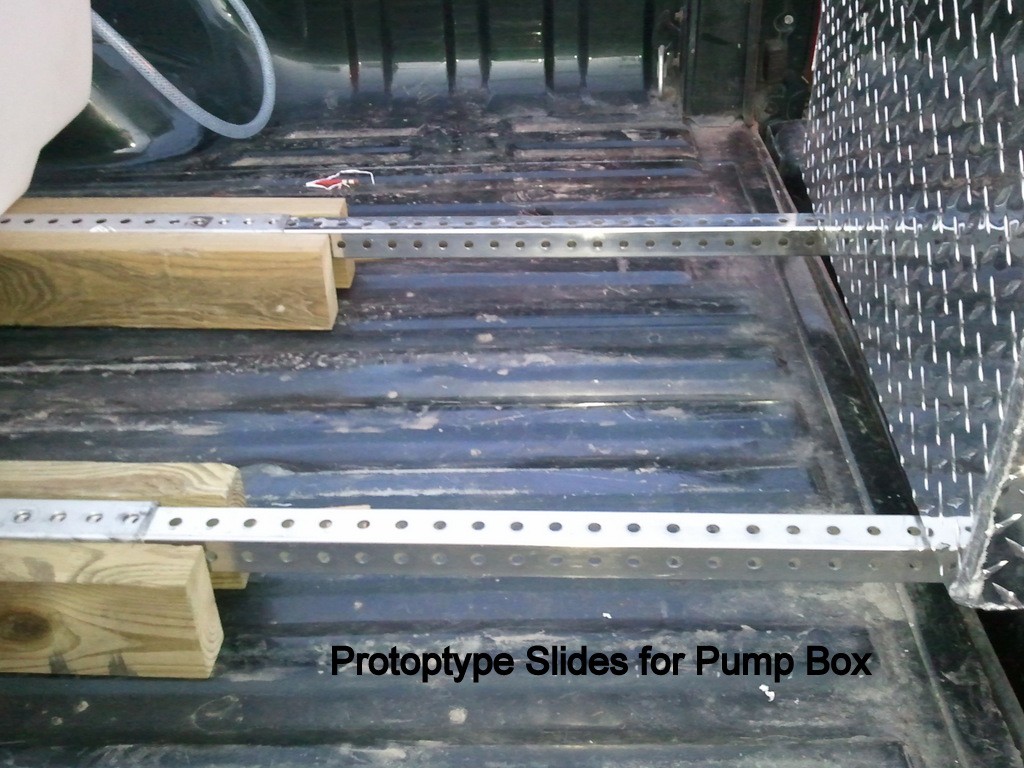

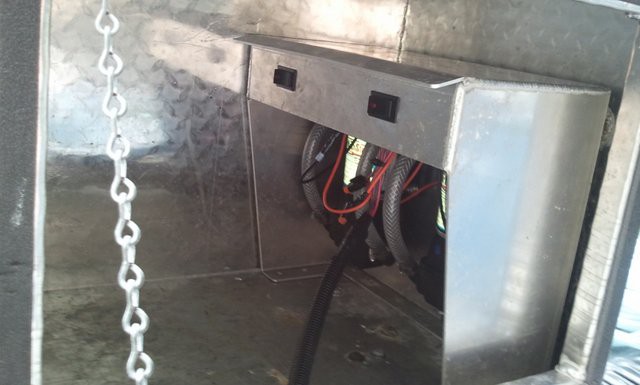

My concept was not to have to work over the dropped tailgate, so I put my pump box on a sliding system. This version has wheels under the box until we see if we are going to stick with this concept.

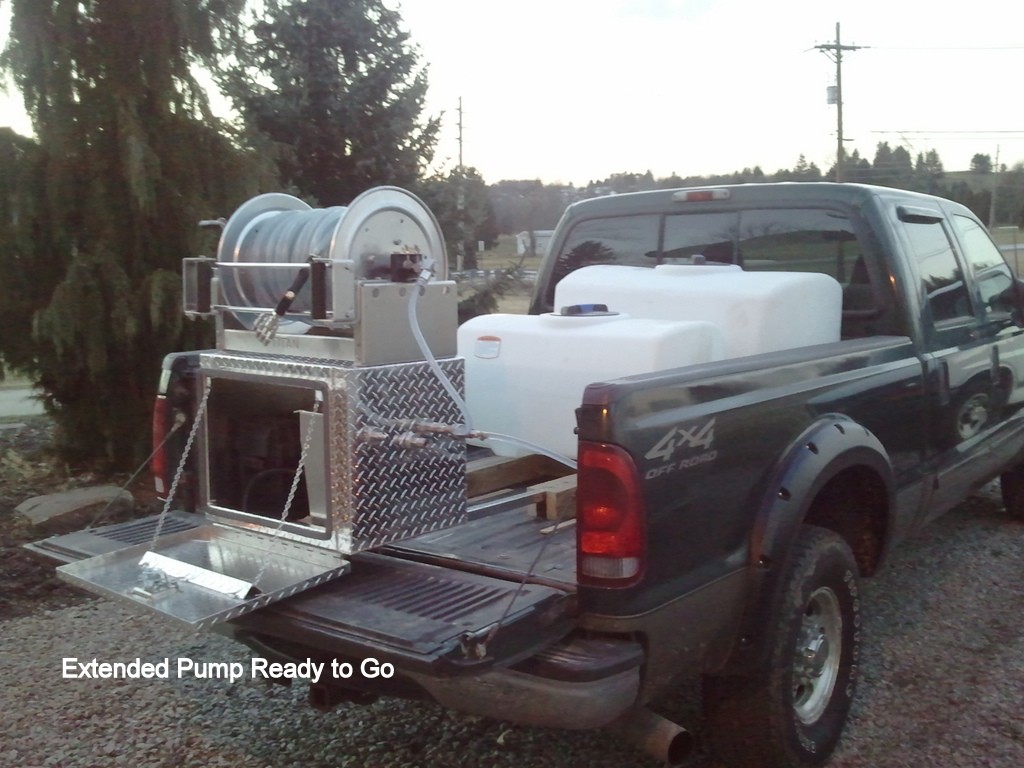

It is really nice to drop the tailgate, wheel the pump back and not have the tailgate in my way.
Until we grow to AC's system, we will try to make our life as simple as possible.
Next order of business in lettering the trucks.
-- Edited by paroofguy on Wednesday 21st of March 2012 01:24:32 PM
-- Edited by paroofguy on Sunday 25th of March 2012 10:24:39 PM
Good old American ingenuity! A very clever concept. Needless to say I like it.
Hank
AC Lockyer said
Mar 22, 2012
Thats great, hot, hot, hot. WINNER!
AC
Steve Salley said
Mar 22, 2012
Thans Guys. I am looking for some suggestions on a ladder rack that I don't have to climb around when I need to get in the truck bed.
Any ideas on a right side mounted system that would eminate the crossover bars?
Michael Derose said
Mar 22, 2012
i like it. It will definetly make you some money.
Doug Rucker said
Mar 22, 2012
paroofguy wrote:
Thans Guys. I am looking for some suggestions on a ladder rack that I don't have to climb around when I need to get in the truck bed.
Any ideas on a right side mounted system that would eminate the crossover bars?
Look for the ladder rack called "the weekender". It is intalled on one side of the truck only.
Paul Kassander said
Mar 27, 2012
Looks good Steve, I like the slide out of the box it will make it much easier to roll that hose with the tailgate down.
Laurie Benjamin said
Jun 8, 2012
woow! thats Great paroofguy....Thats the same system. Paul, i saw yours in a pic from bill.. Do you have any other designs?
I was kinda looking at a skid type.
-- Edited by All Aspects Ltd on Friday 8th of June 2012 06:34:37 PM
Doug Rucker said
Jun 10, 2012
Steve, have you ahd any problems with reel facing the rear of the truck as opposed to facing the house.
Steve Salley said
Jun 12, 2012
HI Doug
I just found this and wanted to respond.

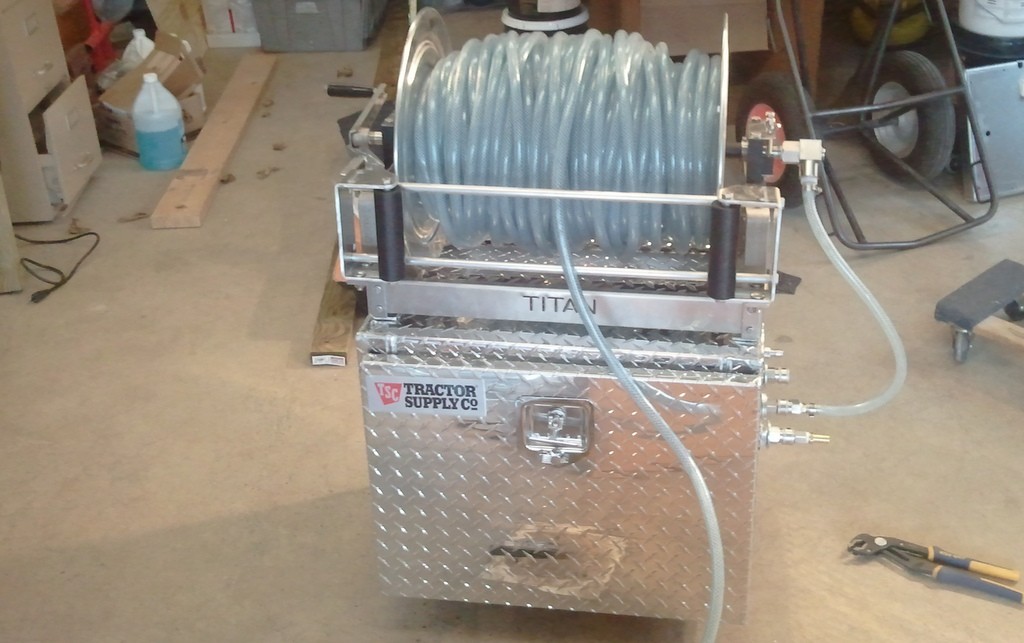

I have not found it to be a problem. I installed the hose reel roller guide on my titan reel when I bought it. That seems to help, but the biggest thing we do is pull out enough hose that it hangs loose right behind the truck on the ground. I always lock my reel pin so no tension is ever put on the coupler on the reel.
I am starting a bit of a redesign today, so I will let you know what my thoughts are later.
I am going to take the 100 gallon tank off the truck and replace it with another 50 and mount them side by side at the front of the bed so we can have more room.
AC Lockyer said
Jun 13, 2012
paroofguy wrote:
HI Doug
I just found this and wanted to respond.
I have not found it to be a problem. I installed the hose reel roller guide on my titan reel when I bought it. That seems to help, but the biggest thing we do is pull out enough hose that it hangs loose right behind the truck on the ground. I always lock my reel pin so no tension is ever put on the coupler on the reel.
I am starting a bit of a redesign today, so I will let you know what my thoughts are later.
I am going to take the 100 gallon tank off the truck and replace it with another 50 and mount them side by side at the front of the bed so we can have more room.
keep us up to date on the mods.
AC
Steve Salley said
Jun 14, 2012

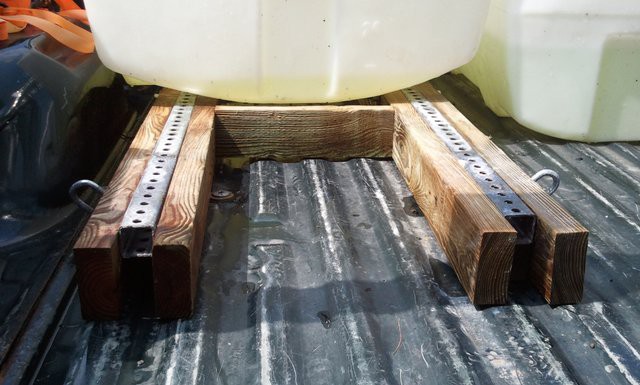

Sure will guys, but not tonight. We relocated our tanks to the front of the bed and then slid our rolling box/hose reel to the left. That makes access to the plumbing much easier as well as easy to reach mixing tank over the side of the bed. We attached our accumulator tank to the back of the box so it is out of the way.
We used the new system today, and like it alot. We did roof cleaning on a large detached garage and the two story house, and then mixed up a batch of house wash and treated the whole house. The accumulator tank makes a huge difference when we just barely pull the wand trigger to feather in the edges of a roof. No protesting from the 12v motors.
If you have not adapted to the new banjo cam locks from powerwashstore.com-- stop reading and call right now! They are truly the best modification on our system to date.
The fight with rusting metal quick connectors is over forever!
Maybe I am to last person to hear about these, but you owe it to yourself to call Bill or Paul and discuss this modification for sure.
Tell him Steve Salley told you about this dream change!
Doug Rucker said
Jun 14, 2012
Just got my Generation 2 in yesterday Steve, gonna get her put together this weekend.
Steve Salley said
Jun 15, 2012
HI Doug and company
I have a couple pictures to post on our modifications and then this weekend I will shoot a quick video showing the process for those interested in a sliding system that we really like to use.

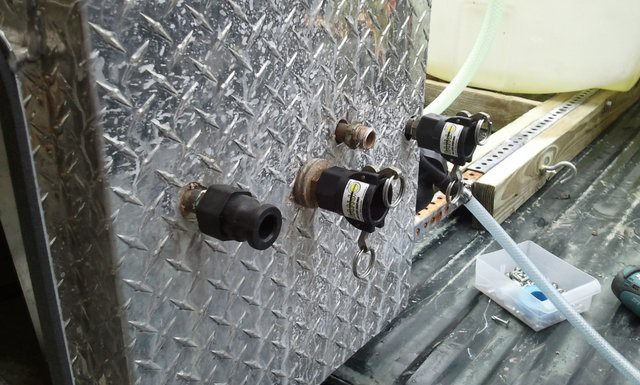

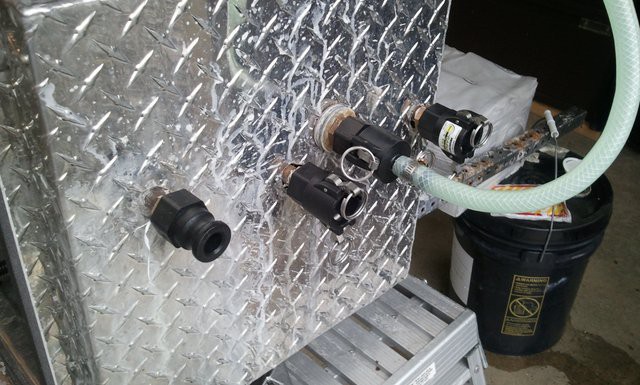

The banjo clamps instead of metal quick connects is one of the best things we have done to our system. I could not tolerate the hook up problems any longer. We tried all the goops suggested and still grrr!!!!! Not anymore.

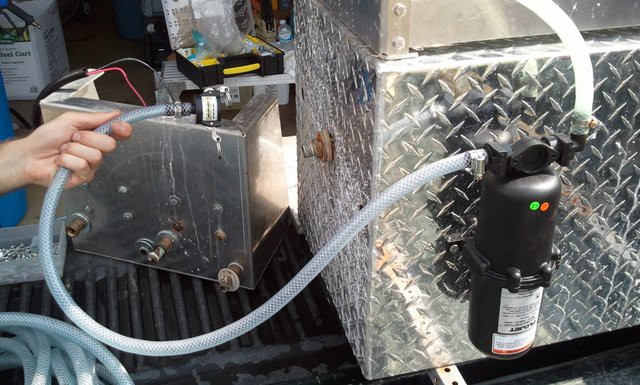

We also installed the new accumulator tank on our box and what a difference that makes in applying chemical with a gentle touch when needed.
I asked this before but I don't see the post. Did you build the pump housing box or did you buy it that way(shape and size) from tractor supply?
AC Lockyer said
Jun 16, 2012
Looking good. You need to buff that diamond plate though the bleach is making it look rough.
AC
Steve Salley said
Jun 16, 2012
Jason
We bought the box from Tractor Supply right off the shelf. It is a very heavy duty material.
AC I never thought about buffing that box, good call. I really did want to shine it up. Any particular regimen you can suggest.
I have to tell you though, at the end of the day this 54 year old pup is shot... I am not used to this monkey business just yet. I truly am enjoying the view from the top though.
Town is looking cleaner everyday-- and my rewards for jobs well done is making my wallet greener :)
Sounds like a job for the younger guys.
AC Lockyer said
Jun 16, 2012
Auto parts stors carry a rim polishing kit with a buffing foam that goes on a drill.
